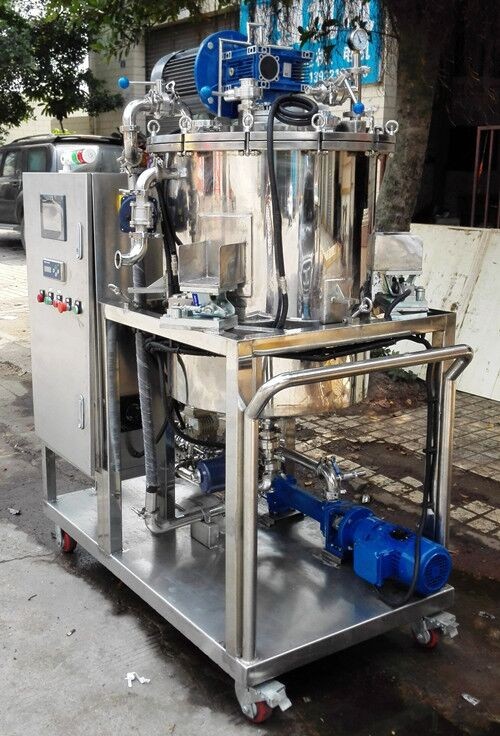

The automatic (weighing) feeding system is a monomer mobile high-precision fluid feeding equipment; automatic feeding with preset flow (weight); avoiding manual weighing and feeding errors, and effectively controlling product quality standards.
Main technical parameters and features:
1. Flow rate: 10-50L/min, material viscosity: between 10,000-100,000 cps,
2. Measurement accuracy: greater than 50kg, accuracy ≤0.2%; less than 50kg, accuracy at 0.05kg;
3. The operating system has 3 control modules: preparation interface, feeding interface, cleaning interface,
4. The operating system can quantitatively prepare and add materials;
5. The operating system saves 300 additions (additions) and above operation history records;
6. The operating system has minimum and maximum liquid level protection functions;
7. The operating system has a metering pump outlet pressure overpressure protection function;
8. The operating system has a minimum (maximum) temperature protection function;
9. Optional heating, heat preservation and stirring functions (materials with poor fluidity at room temperature);
10. Voltage can choose 380V and 220V;
11. Can choose mobile operation mode;
Application areas:
Daily chemical washing, cosmetics, lithium battery industry, fine chemical industry and other high-precision industries.
